233.03mm Multi Touch Capacitive Glass Glass FPC IC Panel for 15.6 Inch Touchscreen
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Finelink |
| Model Number: | 8069 156 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pieces |
|---|---|
| Price: | $18.45/pieces 2-99 pieces |
| Packaging Details: | FINELINK Brand 10K Month Capacity 32 Inch G+G EETI/ILITEK Capacitive Touch Panel for Wall-Mount Photo Frame AIO<br>Standard packaging with carton or wooden box<br>1.The touch panel packing with foam plastic materials;<br>2.Packing with carton or wooden box |
| Supply Ability: | 1000000 Piece/Pieces per Month 21.5 Inch Touch Panel for example |
|
Detail Information |
|||

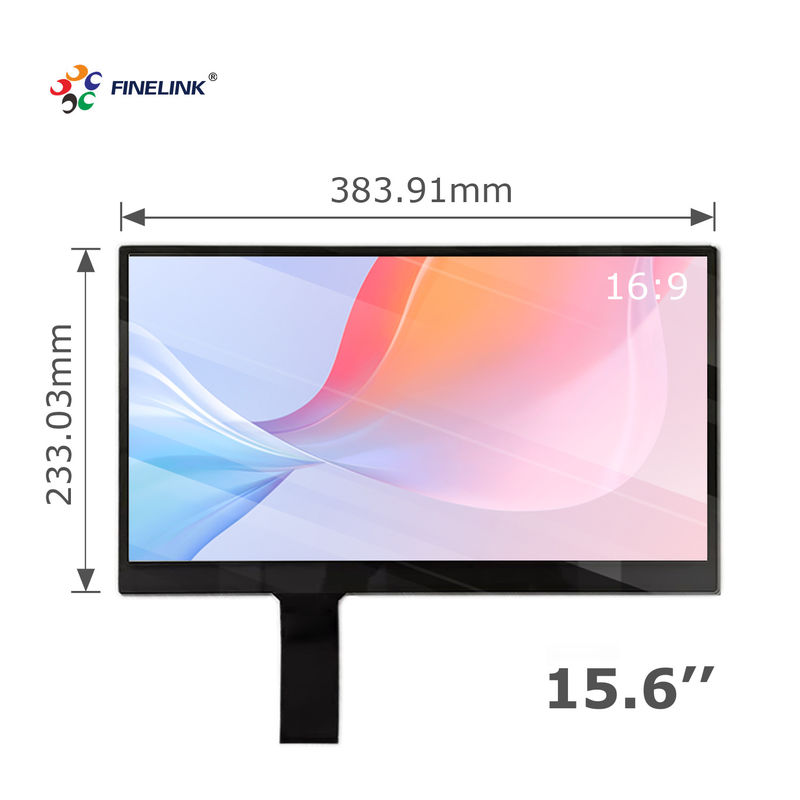

| Features: | IP65/IK10 | Length: | 383.91mm |
|---|---|---|---|
| Application: | Monitor, Touch Display, Kiosk, Smart TV | Interface: | USB/I2C/Serial Port, I2C/USB/RS232 |
| Type: | Capacitive | Diagonal Screen Size: | 15.6 Inch |
| Width: | 233.03mm | Drive IC: | EETI/ILIEK/SIS |
| Product Name: | 15.6 Inch Capacitive Touch Panel | Resolution: | 1920*1080 |
| Brightness: | 350cd/m2 | Structure: | Glass+Glass+FPC+IC |
| Color: | Multi | Solution: | EETI/ILIEK/SIS |
| Touch Points: | Multi Point Touch | Function: | Multifunctional |
| OS: | Linux/ Win/Android Optional | Port: | Shenzhen, Guangzhou, Shanghai |
Product Description
Product Description: Our 233.03mm multi-touch capacitive glass-glass FPC IC panel is designed specifically for 15.6-inch touchscreen displays. With advanced capacitive touch technology and high-quality components, this panel delivers precise and responsive touch control for various applications.
|
Item
|
15.6 Inch Capacitive Touch Panel
|
|---|---|
|
Ratio
|
16:9
|
|
Structure
|
G+G
|
|
Type
|
Capacitive
|
|
Touch controller
|
EETI/ILITEK
|
|
Connection
|
COB
|
|
Lens OD
|
287*176mm
|
|
Sensor OD
|
270*159mm
|
|
Cover glass(T)
|
3mm
|
|
SENSOR(T)
|
0.7mm
|
|
Surface hardness
|
≥6H
|
|
Transmittance
|
≥85%
|
|
Touch points
|
10 Points
|
|
Operating Temperature
|
-20℃ ~ +60℃
|
|
Interface Type
|
USB, RS232, I2C
|
|
Color
|
Black,White,Transparent,Colors Optional
|
|
Customized
|
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
|
|
Operating system
|
WinXP/7/8/10,Android,IOS,Mac,Linux
|
|
Application
|
Industrial,Medical,Banking,Consumer,Military,Education,HMI.....
|
|
Warranty
|
12 Months(3 years maximum)
|
Product Features:
- Capacitive Touch Technology: Utilizes advanced capacitive touch technology for precise and responsive multi-touch input, providing smooth and intuitive user interactions.
- Glass-Glass Construction: Features a durable glass-glass construction for enhanced durability and scratch resistance, ensuring long-lasting performance in demanding environments.
- FPC IC Design: Incorporates a flexible printed circuit (FPC) with integrated IC for efficient signal processing and reliable touch detection, resulting in seamless touch experiences.
- Multi-Touch Support: Supports multi-touch gestures such as pinch-to-zoom, swipe, and rotate, enabling users to interact with content and applications with ease and precision.
- High Sensitivity: Offers high sensitivity and accuracy, allowing for precise touch control even with light touches and gestures.
- Wide Compatibility: Compatible with various 15.6-inch touchscreen displays, making it suitable for use in laptops, monitors, interactive kiosks, and other touch-enabled devices.
Application Scenarios:
- Laptops and Tablets: Ideal for integration into laptops and tablets, providing users with responsive and intuitive touch control for navigation, input, and interaction.
- Interactive Kiosks: Suitable for use in interactive kiosks in retail stores, restaurants, and information centers, allowing users to access information and services through touch-based interfaces.
- Digital Signage: Used in digital signage displays for interactive advertising and information delivery, engaging customers and enhancing brand visibility.
- Gaming Devices: Applied in gaming devices and arcade machines, enabling immersive and responsive touch-based gaming experiences.
Customization Services:
- Size and Dimensions: Offer customization options for size and dimensions to fit specific display requirements and form factors.
- Interface Configuration: Provide customization for interface configuration to ensure compatibility with different display systems and devices.
- Cover Glass Thickness: Customize the thickness of the cover glass to achieve the desired level of durability and aesthetics.
- IC Integration: Customize the integration of IC components based on specific touch panel requirements and project needs.
Packaging and Shipping:
- Secure Packaging: Packaged securely with protective materials to prevent damage during transit and ensure the touch panel arrives in perfect condition.
- Customized Packaging: Offer customized packaging solutions to accommodate bulk orders and ensure safe handling and storage.
- Efficient Shipping: Utilize reliable shipping services to deliver orders promptly, ensuring timely arrival and customer satisfaction.
FAQ:
-
Does the touch panel support multi-touch gestures? Yes, the touch panel supports multi-touch gestures such as pinch-to-zoom, swipe, and rotate, providing users with intuitive touch control options.
-
Is the touch panel compatible with laptops and tablets? Yes, the touch panel is compatible with laptops and tablets, enabling responsive and precise touch control for navigation and interaction.
-
Can the touch panel be customized for specific display sizes? Yes, we offer customization options for size and dimensions to ensure compatibility with various display systems and devices.
-
What is the thickness of the cover glass? The thickness of the cover glass can be customized according to specific project requirements and preferences.
-
How is the touch panel packaged for shipping? The touch panel is packaged securely with protective materials to prevent damage during transit and ensure it arrives in perfect condition. Customized packaging solutions are also available for bulk orders.
