10 Point Touch 11.6 Inch Touch Screen Panel Capacitive With Customizable Design
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Finelink |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pieces |
|---|---|
| Price: | $13.84/pieces 2-99 pieces |
| Packaging Details: | FINELINK Brand 10K Month Capacity 32 Inch G+G EETI/ILITEK Capacitive Touch Panel for Wall-Mount Photo Frame AIO<br>Standard packaging with carton or wooden box<br>1.The touch panel packing with foam plastic materials;<br>2.Packing with carton or wooden box |
| Supply Ability: | 1000000 Piece/Pieces per Month 21.5 Inch Touch Panel for example |
|
Detail Information |
|||
| Product Name: | 11.6 Inch Capacitive Touch Panel | Application: | Touch Panel For POS Monitor |
|---|---|---|---|
| Structure: | Glass+Glass+FPC+IC | Color: | Multi |
| Solution: | EETI/ILIEK/SIS | Touch Points: | Multi Point Touch |
| Function: | Multifunctional | OS: | Linux/ Win/Android Optional |
| Interface: | I2C/USB/RS232 | HS Code: | 85480000 |
| Type: | COB | Display Size: | 11.6 |
| Port: | Shenzhen, Guangzhou, Shanghai | ||
| Highlight: | Touch Screen Panel Capacitive,Touch Screen Panel Customizable,11.6 Inch Capacitive Touch Screen |
||
Product Description

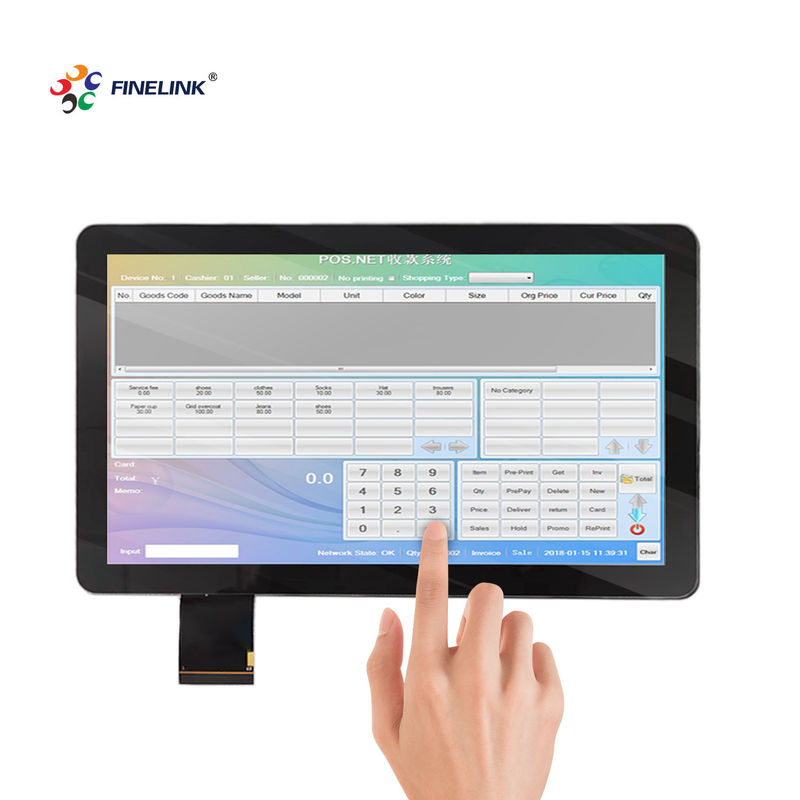

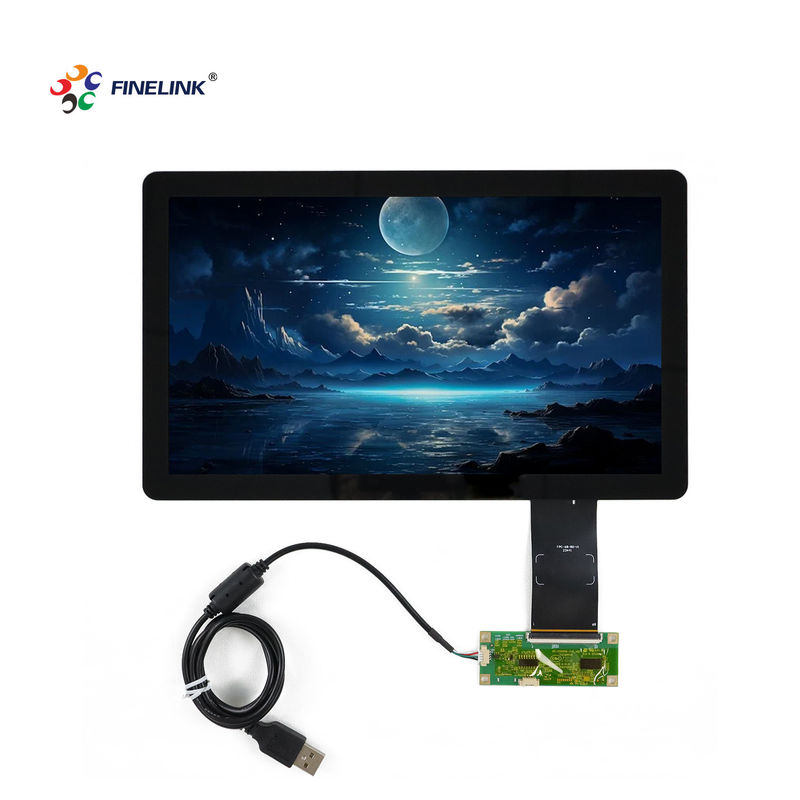

10-Point Touch 11.6-Inch Touch Screen Panel Enhance Efficiency With Customizable Design
Specification
|
Item
|
11.6 Inch Capacitive Touch Panel
|
|
Ratio
|
16:9
|
|
Structure
|
G+G
|
|
Type
|
Capacitive
|
|
Touch controller
|
EETI/ILITEK
|
|
Connection
|
COB
|
|

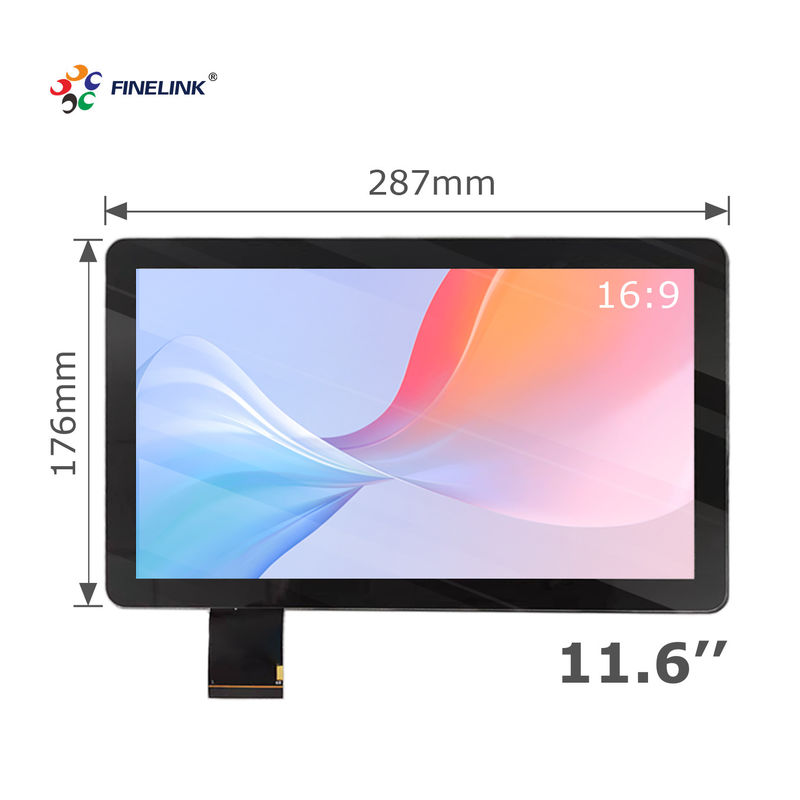

Lens OD
|
287*176mm
|
|
Sensor OD
|
270*159mm
|
|
Cover glass(T)
|
3mm
|
|
SENSOR(T)
|
0.7mm
|
|
Surface hardness
|
≥6H
|
|
Transmittance
|
≥85%
|
|
Touch points
|
10 Points
|
|
Operating Temperature
|
-20℃ ~ +60℃
|
|
Interface Type
|
USB, RS232, I2C
|
|
Color
|
Black,White,Transparent,Colors Optional
|
|
Customized
|
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
|
|
Operating system
|
WinXP/7/8/10,Android,IOS,Mac,Linux
|
|
Application
|
Industrial,Medical,Banking,Consumer,Military,Education,HMI.....
|
|
Warranty
|
12 Months(3 years maximum)
|
Product List
|
SIZE
|
TP P/N
|
RATIO
|
SOLUTION
|
LENS OD
|
LENS VA
|
RANGLE
|
SENSOR OD
|
SENSOR OD
|
|
|
|
|
|
|
|
|
|
|
|
10.1
|
8059101
|
16:9
|
EETI/ILIEK
|
247*150
|
222.5*125
|
R5
|
234.5*140
|
234.5*140
|
|
10.4
|
8060104
|
4:3
|
EETI/ILIEK
|
245.1*192.5
|
211*158.4
|
R5
|
235.2*175.4
|
235.2*175.4
|
|
11.6
|
8061116
|
16:9
|
EETI/ILIEK
|
287*176
|
257*146
|
R10
|
270*159
|
270*159
|
|
12.1
|
8062121
|
4:3
|
EETI/ILIEK
|
274.1*220.9
|
246.7*185.3
|
R2
|
260*200.1
|
260*200.1
|
|
13.3
|
8063133
|
16:9
|
EETI/ILIEK
|
335*197
|
295*166.6
|
R10
|
307.8*181.1
|
307.8*181.1
|
|
14.0
|
8064140
|
16:9
|
EETI/ILIEK
|
335*200
|
311*176
|
R5
|
322*190
|
322*190
|
|
15.0
|
8066150
|
4:3
|
EETI/ILIEK
|
345.3*273.5
|
303.9*227.9
|
R2
|
319*244
|
319*244
|
|
15.6
|
8069156
|
16:9
|
EETI/ILIEK
|
383.9*233.0
|
344*194
|
R2
|
358*210
|
358*210
|
|
17.0
|
8068170
|
4:3
|
EETI/ILIEK
|
377*309
|
338.9*271.3
|
R2
|
356.9*290.8
|
356.9*290.8
|
|
17.3
|
8004173
|
16:9
|
EETI/ILIEK
|
405.4*243.8
|
383.8*216.8
|
R6
|
400*237.8
|
400*237.8
|
|
18.5
|
8071185
|
16:9
|
EETI/ILIEK
|
488.8*269.4
|
410.8*231.4
|
R6.3
|
428*249.9
|
428*249.9
|
|
19.0
|
8072190
|
5:4
|
EETI/ILIEK
|
421*346
|
377.3*302.0
|
R2
|
395*320.2
|
395*320.2
|
|
19.5
|
8074195
|
16:9
|
EETI/ILIEK
|
472.5*280.9
|
433*240.3
|
R7
|
447.4*257.8
|
447.4*257.8
|
|
21.5
|
8109215
|
16:9
|
EETI/ILIEK
|
515.8*307.3
|
477.8*307.3
|
R6.3
|
493.4*287.8
|
493.4*287.8
|
|
23.8
|
8080238
|
16:9
|
EETI/ILIEK
|
573*349
|
527.5*297
|
R5.8
|
544*316.5
|
544*316.5
|
|
27.0
|
8082270
|
16:9
|
EETI/ILIEK
|
658*416
|
598*336
|
R8
|
618.2*360.4
|
618.2*360.4
|
|
32.0
|
8084320
|
16:9
|
EETI/ILIEK
|
744.6*447
|
698.7*393.3
|
R9.85
|
718.3*412.9
|
718.3*412.9
|
|
43.0
|
8086430
|
16:9
|
EETI/ILIEK
|
996.3*586.5
|
940*528.9
|
R11
|
963.1*559.1
|
963.1*559.1
|
|
49.0
|
8177490
|
16:9
|
EETI/ILIEK
|
1136.7*668.0
|
1072.7*603.0
|
R11
|
1103.3*633.7
|
1103.3*633.7
|
|
55.0
|
6915550
|
16:9
|
EETI/ILIEK
|
1272.6*743.8
|
1208.2*678.9
|
R11
|
1235.8*708.1
|
1235.8*708.1
|
Exhibition
Packaging & Shipping
Certificate & Typical Customer
FAQ
Q1: Are you a manufacturer or trading company?
A: Yes, we are a manufacturer specializing in PCAP more than 10 years, with 30000 m2 production facilities located in ShenZhen, Guangdong Province and Wuxue, HuBei Province.
Q2: What is your MOQ?
A: We have no MOQ requirement for our standard models, For customized models, There are different MOQ requirements depends on the size and complexity of customization.
Q3: How long is the warranty period?
A: Generally the warranty period is three years. It depends on different products.
Q4: What is the delivery time of the products?
A: Standard samples in stock can be delivered within 3 days after we received the payment. 7-15 workdays for the customized samples. 15-20 workdays for mass production.
Q5: What is your shipping method?
A: DHL, UPS, FedEx, TNT, Sea Freight.It depends on different customer.
Q6: What is the products application?
A:Widely used in commercial display, education, industrial control, medical, automotive, smart home ,optical bonding and other fields.
