15.6 Inch Industrial Open Frame Capacitive Touch Screen For Automation Black
Product Details:
Place of Origin: | Guangdong, China |
Brand Name: | FINELINK |
Payment & Shipping Terms:
Price: | $38.00/pieces 1-499 pieces |
---|---|
Packaging Details: | Standard packaging with carton or wooden box<br>1.The touch panel packing with foam plastic materials;<br>2.Packing with carton or wooden box. |
Supply Ability: | 3000 Piece/Pieces per Day |
Detail Information |
|||
Warranty(Year): | 1-Year | Color: | Black |
---|---|---|---|
Package: | Yes | Series: | For Business |
Aspect Ratio: | 16:9 | After-sales Service: | Call Center And On-line Technical Support, Free Spare Parts |
Private Mold: | NO | Products Status: | New |
Type: | Capacitive | Interface Type: | Usb |
Port: | Shenzhen | ||
Highlight: | Industrial Open Frame Capacitive Touch Screen,15.6 Inch Open Frame Capacitive Touch Screen,Capacitive Touch Screen 15.6 Inch |
Product Description

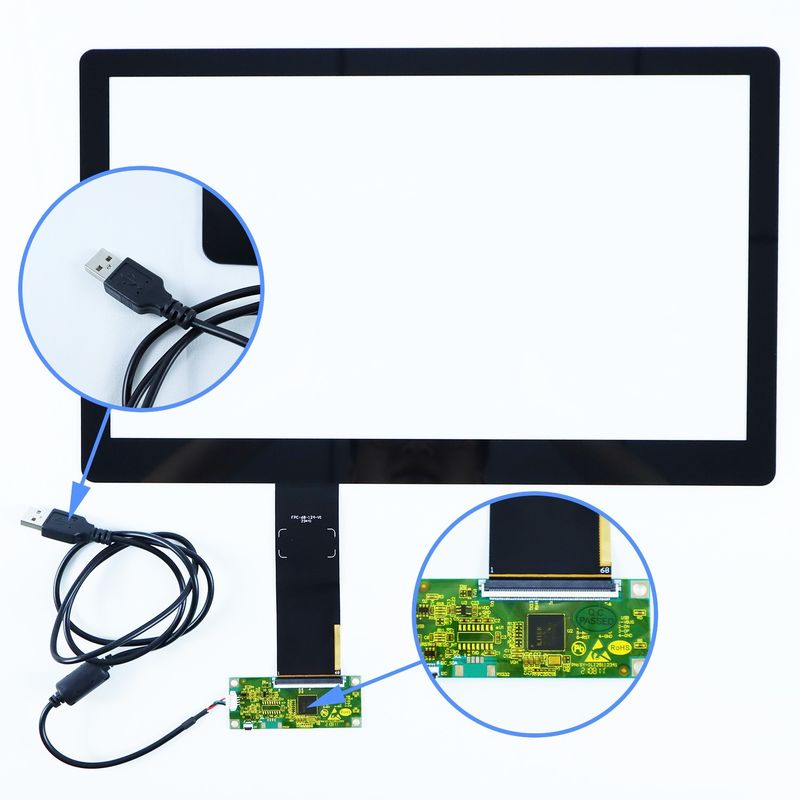

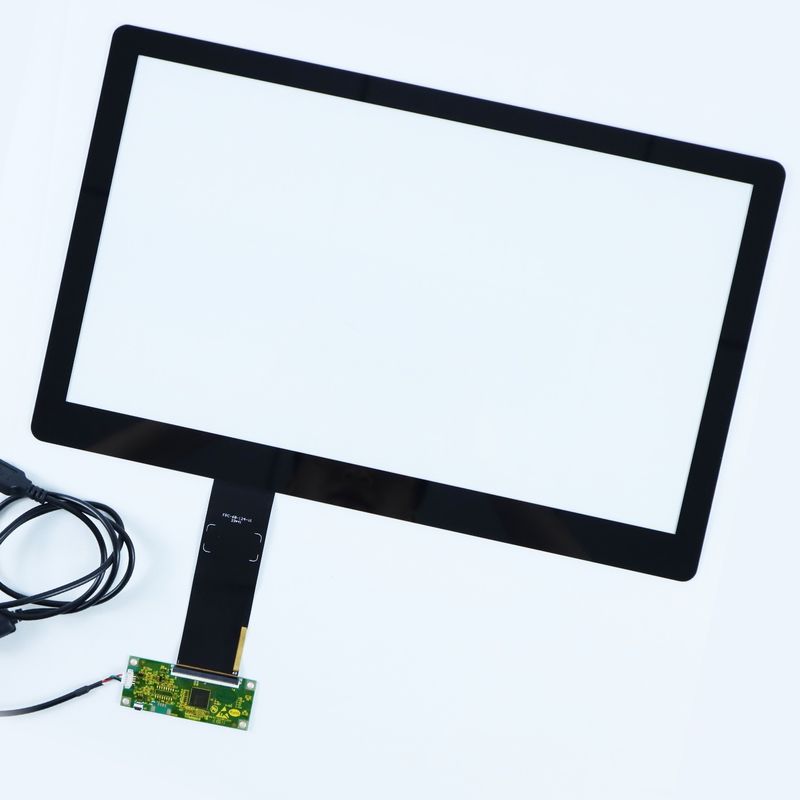

15.6'' Wide Screen Industrial Open Frame Capacitive Touch Screen For Automation Black
Specification
Item
|
15.6 inch capacitive touch panel
|
Ratio
|
16:09
|
Structure
|
G+G
|
Type
|
Capacitive
|
Touch controller
|
EETI/ILITEK
|
Connection
|
COB
|
Lens OD
|
383*233mm
|
Sensor OD
|
358*210mm
|
Cover glass(T)
|
3mm
|
SENSOR(T)
|
0.7mm
|
Surface hardness
|
≥6H
|
Transmittance
|
≥85%
|
Touch points
|
10 Points
|
Operating Temperature
|
-20℃~+60℃
|
Interface Type
|
USB,RS232,I2C
|
Color
|
Black,White,Transparent,colors optional
|
Customized
|
AG/AG/AF/AM/AH/Waterproof/Glove touch
|
Operating system
|
WinXP/7/8/10,Android,IOS,Mac,Linux
|
Application
|
Industrial,medical,banking,consumer,military,education,HMI....
|
Warranty
|
12 Months(3 years maximum)
|
Product Description
Company Profile
The large size touch panel screen manufacture
FINELINK Photoelectric is a national high-tech enterprise, which dedicates to design, R&D, production and sale of capacitive touch panel (CTP) and optical binding. Shenzhen FINELINK was established in 2011, with a total area of about 5000㎡. Mainly provide the touch panel and optical bonding solutions. Hubei FINELINK was established in 2019. Mainly in cover glass, sensor glass,touch panel(GG/GFF) and optical bonding, electronic terminal assembly. Factory facility is covering 25,000 ㎡ in Hubei. The products can not only meet the large-scale production, but also to meet the customer's customized requirements. Our products are widely used in outdoor, industrial, bank, education,medical, smart home and other fields. Our target is to become your most trusted touch and bonding solution provider.
Product List
SIZE
|
TP P/N
|
RATIO
|
SOLUTION
|
|
LENS OD
|
LENS VA
|
R ANGLE
|
SENSOR OD
|
|
|
|
|
|
|
|
|
|
|
|
10.1
|
8059 101
|
16:9
|
EETI/ILIEK
|
|
247*150*2
|
222.5*125
|
R5
|
234.5*140
|
|
10.4
|
8060 104
|
4:3
|
EETI/ILIEK
|
|
245.1*192.5*2
|
211*158.4
|
R5
|
235.2*175.4
|
|
11.6
|
8061 116
|
16:9
|
EETI/ILIEK
|
|
287*176*2
|
257*146
|
R10
|
270*159
|
|
12.1
|
8062 121
|
4:3
|
EETI/ILIEK
|
|
274.16*220.92*1.1
|
246.76*185.32
|
R2
|
260*200.1
|
|
13.3
|
8063 133
|
16:9
|
EETI/ILIEK
|
|
335*197*1.1
|
295*166.6
|
R10
|
307.88*181.12
|
|
14.0
|
8064 140
|
16:9
|
EETI/ILIEK
|
|
335*200*1.1
|
311*176
|
R5
|
322*190
|
|
15.0
|
8066 150
|
4:3
|
EETI/ILIEK
|
|
345.35*273.55*1.1
|
303.99*227.99
|
R2
|
319*244
|
|
15.6
|
8069 156
|
16:9
|
EETI/ILIEK
|
|
383.91*233.03*3
|
344*194
|
R2
|
358*210
|
|
17.0
|
8068 170
|
4:3
|
EETI/ILIEK
|
|
377*309*2
|
338.92*271.34
|
R2
|
356.92*290.84
|
|
17.3
|
8004 173
|
16:9
|
EETI/ILIEK
|
|
405.49*243.81*1.1
|
383.89*216.81
|
R6
|
400*237.81
|
|
18.5
|
8071 185
|
16:9
|
EETI/ILIEK
|
|
488.8*269.4*3
|
410.8*231.4
|
R6.3
|
428*249.9
|
|
19.0
|
8072 190
|
5:4
|
EETI/ILIEK
|
|
421*346*2
|
377.32*302.06
|
R2
|
395*320.26
|
|
19.5
|
8074 195
|
16:9
|
EETI/ILIEK
|
|
472.5*280.9*1.8
|
433*240.36
|
R7
|
447.4*257.8
|
|
21.5
|
8109 215
|
16:9
|
EETI/ILIEK
|
|
515.8*307.3*3
|
477.84*307.31
|
R6.3
|
493.42*287.81
|
|
23.8
|
8080 238
|
16:9
|
EETI/ILIEK
|
|
573*349*3
|
527.5*297
|
R5.8
|
544*316.5
|
|
270
|
8082 270
|
16:9
|
EETI/ILIEK
|
|
658*416*2
|
598*336
|
R8
|
618.2*360.45
|
|
320
|
8084 320
|
16:9
|
EETI/ILIEK
|
|
744.6*447*3
|
698.7*393.3
|
R9.85
|
718.3*412.93
|
|
430
|
8086 430
|
16:9
|
EETI/ILIEK
|
|
996.3*586.5*3
|
940*528.9
|
R11
|
963.18*559.16
|
|
490
|
8177 490
|
16:9
|
EETI/ILIEK
|
|
1136.78*668.01*4
|
1072.78*603.01
|
R11
|
1103.3*633.7
|
|
550
|
6915 550
|
16:9
|
EETI/ILIEK
|
|
1272.6*743.89*4
|
1208.2*678.98
|
R11
|
1235.8*708.1
|
Packing & Delivery
Standard Package
Standard packaging with carton or wooden box 1.The touch panel packing with foam plastic materials; 2.Packing with carton or wooden box.
Multipe Shipping
Express: DHL,UPS,EMS,TNT,Fedex
Other: Air or sea transportation
Exhibition
Certifications
FAQ
Q1: Are you a manufacturer or trading company? A: Yes, we are a manufacturer specializing in PCAP more than 10 years, with 30000 ㎡ production facilities located in ShenZhen and HuangGang HuBei City.
Q2: What is your MOQ? A: We have no MOQ requirement for our standard models, For customized models, There are different MOQ requirements depends on the size and complexity of customization.
Q3: How long is the warranty period? A: Generally the warranty period is three years. It depends on different products. Q4: What is the delivery time of the products? A: Standard samples in stock can be delivered within 3 days after we received the payment. 7-15 workdays for the customized samples. 15-20 workdays for mass production. Q5: What is your shipping method? A: DHL, UPS, FedEx, TNT, Sea Freight.It depends on different customer. Q6.What is the products application? A:Widely used in comerical display, education, industrial control, medical, automotive, smart home ,optical bonding and other fields.
Want to Know more details about this product
