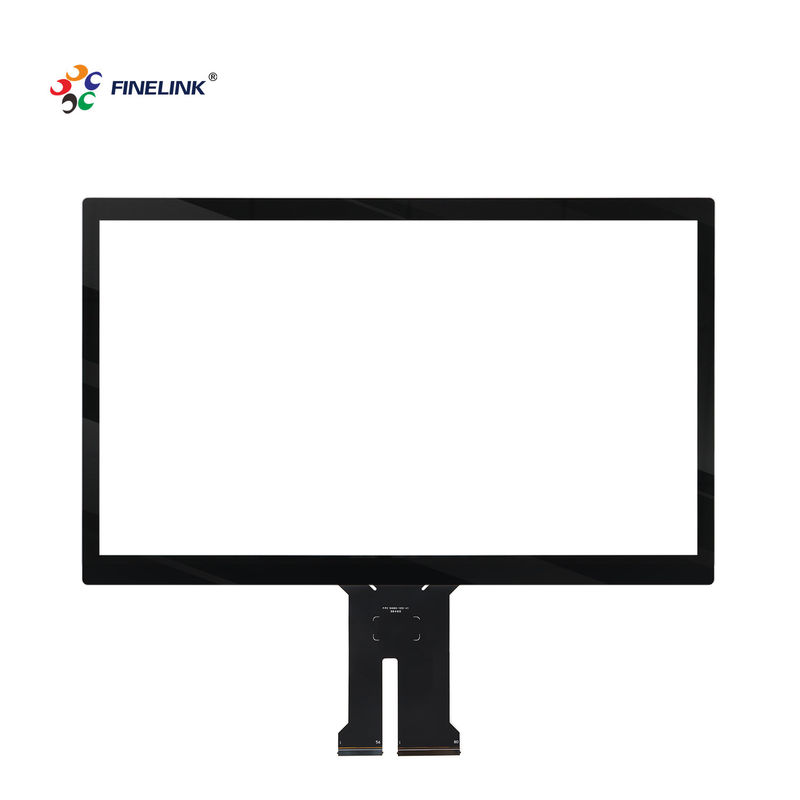

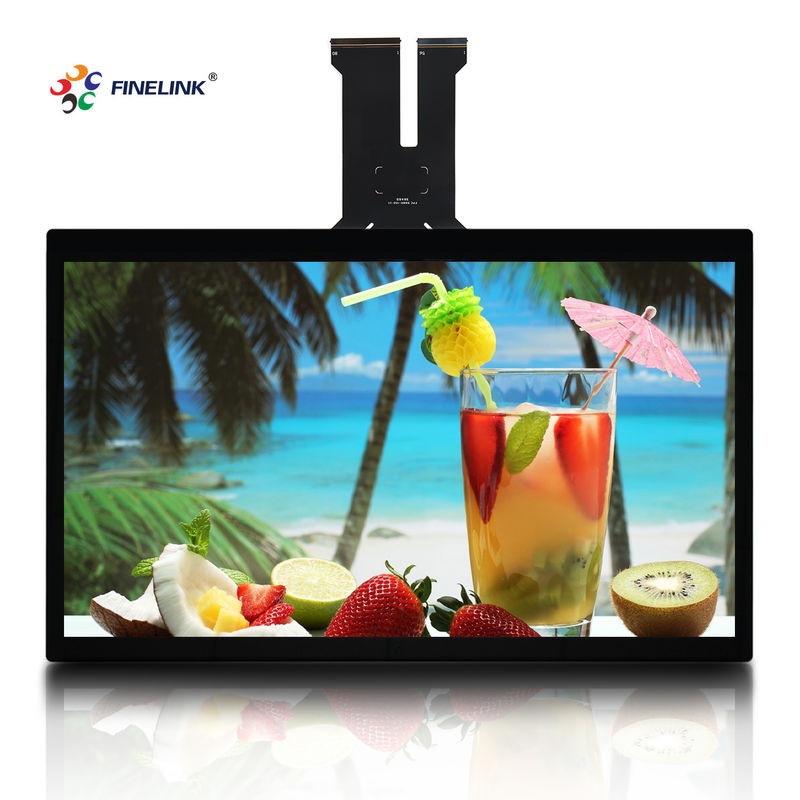

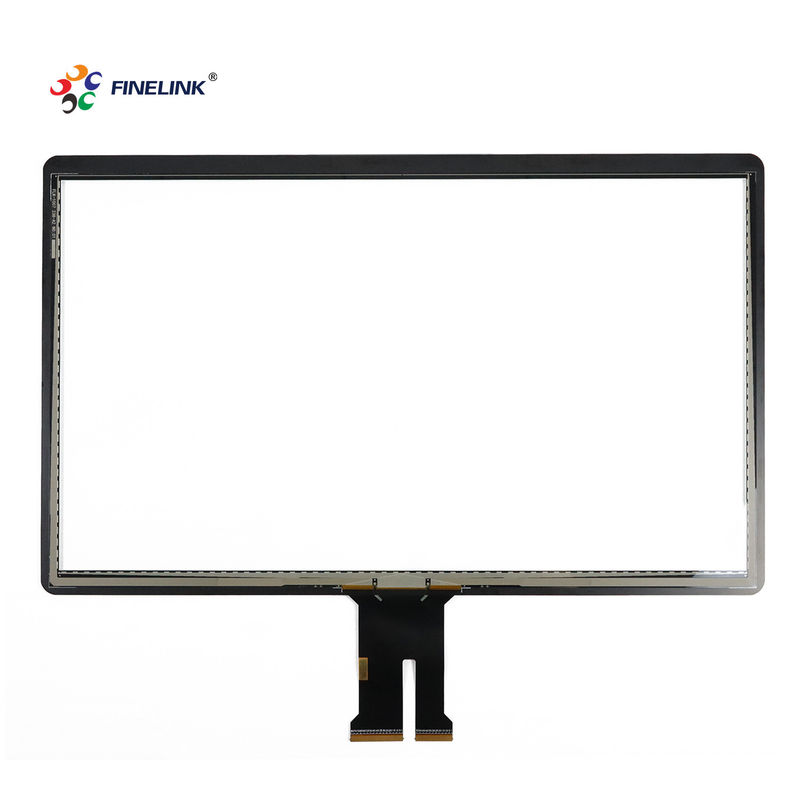

FINELINK 24 27 32 43 49 55 65 75 86 inch Capacitive Touch Screen Panel with EETI Controller
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Finelink |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pieces |
|---|---|
| Price: | $32.28/pieces 2-99 pieces |
| Packaging Details: | FINELINK Brand 10K Month Capacity 32 Inch G+G EETI/ILITEK Capacitive Touch Panel for Wall-Mount Photo Frame AIO<br>Standard packaging with carton or wooden box<br>1.The touch panel packing with foam plastic materials;<br>2.Packing with carton or wooden box |
| Delivery Time: | 7-20 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000000 Piece/Pieces per Month 21.5 Inch Touch Panel for example |
|
Detail Information |
|||
| Product Name: | 24 Inch Capacitive Touch Panel | Application: | Touch Panel For Monitor |
|---|---|---|---|
| Structure: | Glass+Glass+FPC+IC | Color: | Multi |
| Solution: | EETI/ILIEK/SIS | Touch Points: | Multi Point Touch |
| Function: | Multifunctional | OS: | Linux/ Win/Android Optional |
| Interface: | I2C/USB/RS232 | HS Code: | 85480000 |
| Type: | COB | Display Size: | 24 Inch |
| Port: | Shenzhen, Guangzhou, Shanghai | ||
Product Description
Specification
|
Item
|
24 Capacitive Touch Panel
|
|---|---|
|
Ratio
|
16:9
|
|
Structure
|
G+G
|
|
Type
|
Capacitive
|
|
Touch controller
|
EETI/ILITEK
|
|
Connection
|
COB
|
|
Lens OD
|
287*176mm
|
|
Sensor OD
|
270*159mm
|
|
Cover glass(T)
|
3mm
|
|
SENSOR(T)
|
0.7mm
|
|
Surface hardness
|
≥6H
|
|
Transmittance
|
≥85%
|
|
Touch points
|
10 Points
|
|
Operating Temperature
|
-20℃ ~ +60℃
|
|
Interface Type
|
USB, RS232, I2C
|
|
Color
|
Black,White,Transparent,Colors Optional
|
|
Customized
|
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
|
|
Operating system
|
WinXP/7/8/10,Android,IOS,Mac,Linux
|
|
Application
|
Industrial,Medical,Banking,Consumer,Military,Education,HMI.....
|
|
Warranty
|
12 Months(3 years maximum)
|
Product Description:
Introducing the FINELINK capacitive touch screen panels, available in sizes ranging from 24 to 86 inches, featuring EETI controllers. These touch screen panels offer a sleek and responsive interface for various applications.
Product Features:
- Capacitive Touch Technology: Utilizes advanced capacitive touch technology for precise and smooth touch input.
- EETI Controller: Equipped with EETI controllers for reliable performance and compatibility with a wide range of devices.
- Multi-Touch Support: Supports multi-touch gestures such as pinch-to-zoom and swipe for enhanced user interaction.
- High Resolution Display: Features high-resolution displays for crisp and clear visuals.
- Wide Range of Sizes: Available in sizes ranging from 24 to 86 inches to suit different display requirements.
- Durable Construction: Built with durable materials for long-lasting durability in various environments.
Application Scenarios:
The FINELINK capacitive touch screen panels with EETI controllers are suitable for a variety of applications, including:
- Interactive kiosks and digital signage in retail stores, museums, and public spaces.
- Control panels for industrial automation, machinery, and equipment.
- Interactive displays in educational institutions, corporate offices, and training facilities.
- Point-of-sale terminals and self-service stations in restaurants, hotels, and entertainment venues.
Customization Services:
Tailor the touch screen panels to your specific needs with our customization options, including:
- Size and Dimensions: Customize the size of the touch screen panel to fit your display requirements.
- Controller Configuration: Choose from various EETI controller options based on your device compatibility and performance requirements.
- Additional Features: Add features such as anti-glare coatings or vandal-resistant glass for enhanced usability and durability.
Packaging and Shipping:
We ensure the safe and secure delivery of our touch screen panels through:
- Secure Packaging: Each panel is carefully packaged using protective materials to prevent damage during transit.
- Global Shipping: Partnering with reliable logistics providers, we offer worldwide shipping to deliver your order promptly.
- Tracking and Insurance: Track your shipment and benefit from insurance coverage for added peace of mind.
FAQ:
- Can the touch screen panels be customized to specific sizes? Yes, we offer customization options for size and dimensions to meet your display requirements.
- Are the touch screen panels compatible with various devices? Yes, our touch screen panels with EETI controllers are compatible with a wide range of devices, including computers, tablets, and digital signage players.
- Do you provide technical support for installation and integration? Yes, we offer comprehensive technical support to assist with installation, integration, and troubleshooting.
- Are the touch screen panels suitable for outdoor use? While our touch screen panels are primarily designed for indoor use, we offer customization options such as anti-glare coatings for improved visibility in outdoor environments.
- What warranty is provided with the touch screen panels? We provide a standard warranty period for our touch screen panels, with options for extended warranties available. Contact our sales team for more details.
