ITO Glass FPC 15.6 Inch Capacitive Touch Panel For Advertising Kiosk/Vending Machine
Product Details:
Place of Origin: | Guangdong, China |
Brand Name: | FINELINK |
Certification: | ISO 9001/RoSH |
Payment & Shipping Terms:
Minimum Order Quantity: | 2 pieces |
---|---|
Price: | $21.21/pieces 2-499 pieces |
Packaging Details: | March Expo 15.6 inch Capacitive Touch Panel for Advertising Kiosk/ Vending Machine<br>Standard packaging with carton or wooden box<br>1.The touch panel packing with foam plastic materials;<br>2.Packing with carton or wooden box. |
Supply Ability: | 3000 Piece/Pieces per Day 21.5 inch capacitive touch panel |
Detail Information |
|||
Warranty(Year): | 1-Year | Color: | Multi |
---|---|---|---|
Package: | Yes | Series: | For Business |
Aspect Ratio: | 16:9 | After-sales Service: | Call Center And On-line Technical Support, Onsite Training And Inspection, Free Spare Parts, Others |
Private Mold: | Yes | Products Status: | New |
Type: | Capacitive | Interface Type: | USB/I2C/Serial |
Name: | March Expo 15.6 Inch Capacitive Touch Panel | Structure: | Cover Glass+ITO Glass+FPC+IC |
Touch Points: | Multi Touch Supported | Operating System: | XP/WIN7/WIN8/WIN10/Android/Linux Etc |
Response Time: | Response Time: <10ms | Operating Temperature: | -40℃~+85℃ |
Storage Temperature: | -40℃~+90℃ | SHIPPING WAY: | Air/Land/Ship Shipping |
HS Code: | 8548000030 | Port: | Shenzhen,Guangzhou,Shanghai |
Highlight: | Capacitive Touch Panel 15.6 Inch,ITO Capacitive Touch Panel |
Product Description

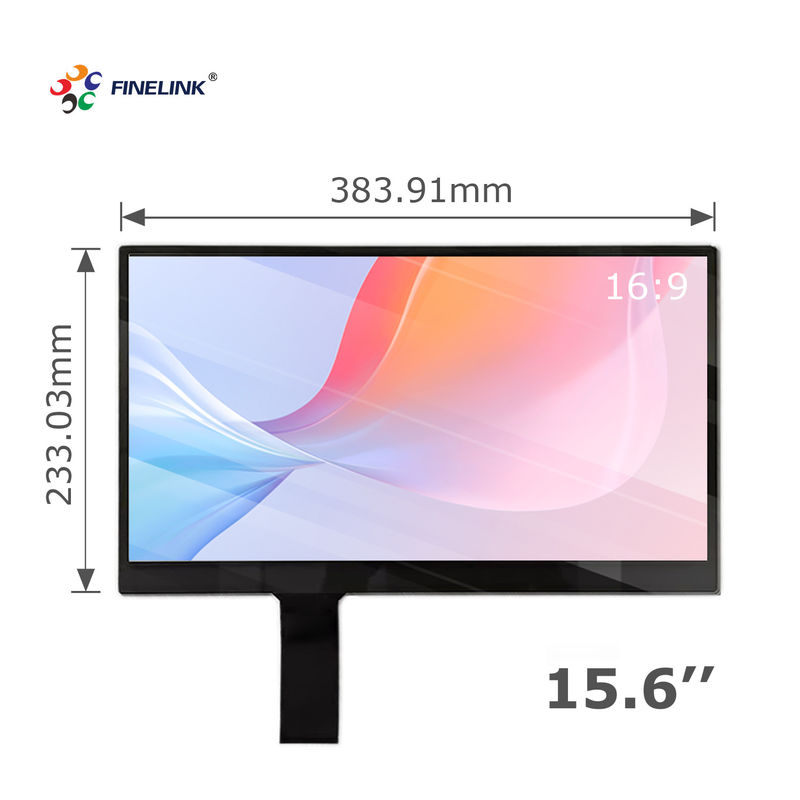

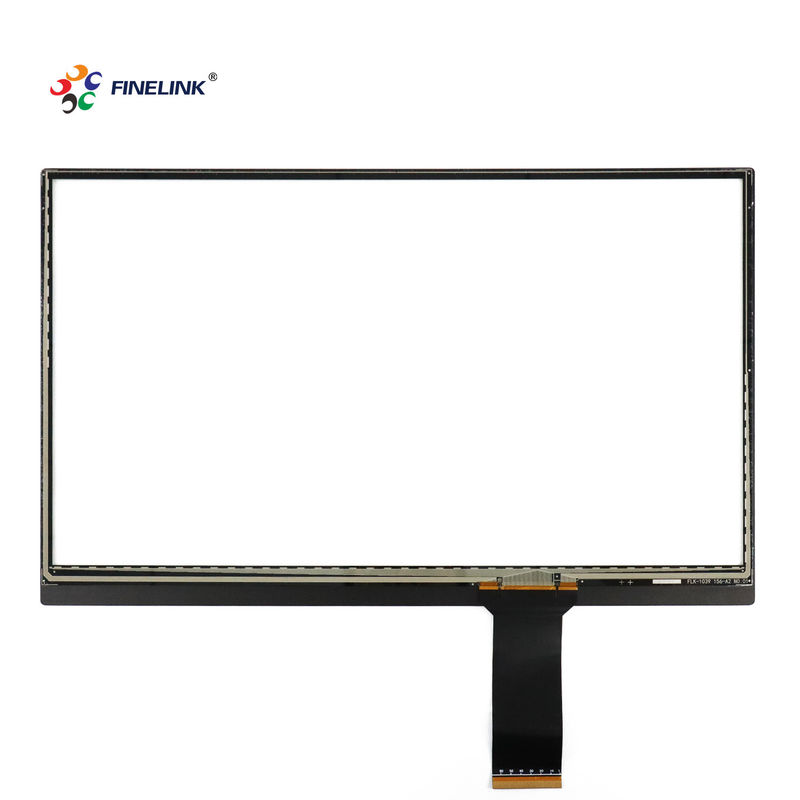

ITO Glass FPC 15.6 Inch Capacitive Touch Panel For Advertising Kiosk/Vending Machine
Specification
Item
|
March Expo 15.6 inch Capacitive Touch Panel for Advertising Kiosk/ Vending Machine
|
Ratio
|
16:9
|
Structure
|
G+G
|
Type
|
Capacitive
|
Touch controller
|
EETI/ILITEK/SIS/GOODIX
|
Connection
|
COB/COF
|
Lens OD
|
383.91*233.03mm
|
Sensor OD
|
358*210mm
|
Cover glass(T)
|
3mm
|
SENSOR(T)
|
0.7mm
|
Surface hardness
|
≥6H
|
Transmittance
|
≥85%
|
Touch points
|
10 Points
|
Operating Temperature
|
-40℃ ~ +85℃
|
Interface Type
|
USB, RS232, I2C
|
Color
|
Black,White,Transparent,Colors Optional
|
Customized
|
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
|
Operating system
|
WinXP/7/8/10,Android,IOS,Mac,Linux
|
Application
|
Industrial,Medical,Banking,Consumer,Military,Education,HMI.....
|
Warranty
|
12 Months(3 years maximum)
|
Product List
SIZE
|
TP P/N
|
RATIO
|
SOLUTION
|
|
LENS OD
|
LENS VA
|
R ANGLE
|
SENSOR OD
|
|
|
|
|
|
|
|
|
|
|
|
10.1
|
8059 101
|
16:9
|
EETI/ILITEK
|
|
247*150*2
|
222.5*125
|
R5
|
234.5*140
|
|
10.4
|
8060 104
|
4:3
|
EETI/ILITEK
|
|
245.1*192.5*2
|
211*158.4
|
R5
|
235.2*175.4
|
|
11.6
|
8061 116
|
16:9
|
EETI/ILITEK
|
|
287*176*2
|
257*146
|
R10
|
270*159
|
|
12.1
|
8062 121
|
4:3
|
EETI/ILITEK
|
|
274.16*220.92*1.1
|
246.76*185.32
|
R2
|
260*200.1
|
|
13.3
|
8063 133
|
16:9
|
EETI/ILITEK
|
|
335*197*1.1
|
295*166.6
|
R10
|
307.88*181.12
|
|
14.0
|
8064 140
|
16:9
|
EETI/ILITEK
|
|
335*200*1.1
|
311*176
|
R5
|
322*190
|
|
15.0
|
8066 150
|
4:3
|
EETI/ILITEK
|
|
345.35*273.55*1.1
|
303.99*227.99
|
R2
|
319*244
|
|
15.6
|
8069 156
|
16:9
|
EETI/ILITEK
|
|
383.91*233.03*3
|
344*194
|
R2
|
358*210
|
|
17.0
|
8068 170
|
4:3
|
EETI/ILITEK
|
|
377*309*2
|
338.92*271.34
|
R2
|
356.92*290.84
|
|
17.3
|
8004 173
|
16:9
|
EETI/ILITEK
|
|
405.49*243.81*1.1
|
383.89*216.81
|
R6
|
400*237.81
|
|
18.5
|
8071 185
|
16:9
|
EETI/ILITEK
|
|
488.8*269.4*3
|
410.8*231.4
|
R6.3
|
428*249.9
|
|
19.0
|
8072 190
|
5:4
|
EETI/ILITEK
|
|
421*346*2
|
377.32*302.06
|
R2
|
395*320.26
|
|
19.5
|
8074 195
|
16:9
|
EETI/ILITEK
|
|
472.5*280.9*1.8
|
433*240.36
|
R7
|
447.4*257.8
|
|
21.5
|
8109 215
|
16:9
|
EETI/ILITEK
|
|
515.8*307.3*3
|
477.84*307.31
|
R6.3
|
493.42*287.81
|
|
23.8
|
8080 238
|
16:9
|
EETI/ILITEK
|
|
573*349*3
|
527.5*297
|
R5.8
|
544*316.5
|
|
270
|
8082 270
|
16:9
|
EETI/ILITEK
|
|
658*416*2
|
598*336
|
R8
|
618.2*360.45
|
|
320
|
8084 320
|
16:9
|
EETI/ILITEK
|
|
744.6*447*3
|
698.7*393.3
|
R9.85
|
718.3*412.93
|
|
430
|
8086 430
|
16:9
|
EETI/ILITEK
|
|
996.3*586.5*3
|
940*528.9
|
R11
|
963.18*559.16
|
|
490
|
8177 490
|
16:9
|
EETI/ILITEK
|
|
1136.78*668.01*4
|
1072.78*603.01
|
R11
|
1103.3*633.7
|
|
550
|
6915 550
|
16:9
|
EETI/ILITEK
|
|
1272.6*743.89*4
|
1208.2*678.98
|
R11
|
1235.8*708.1
|
Why Choose Us
Exhibition
Packaging & Shipping
Certificate & Typical Customer
FAQ
Q1: Are you a manufacturer or trading company?
A: Yes, we are a manufacturer specializing in PCAP more than 10 years, with 30000 m2 production facilities located in ShenZhen, Guangdong Province and Wuxue, HuBei Province.
Q2: What is your MOQ?
A: We have no MOQ requirement for our standard models, For customized models, There are different MOQ requirements depends on the size and complexity of customization.
Q3: How long is the warranty period?
A: Generally the warranty period is three years. It depends on different products.
Q4: What is the delivery time of the products?
A: Standard samples in stock can be delivered within 3 days after we received the payment. 7-15 workdays for the customized samples. 15-20 workdays for mass production.
Q5: What is your shipping method?
A: DHL, UPS, FedEx, TNT, Sea Freight.It depends on different customer.
Q6: What is the products application?
A:Widely used in commercial display, education, industrial control, medical, automotive, smart home ,optical bonding and other fields.
